Laminated Rubber Bearing: Applications and Case Studies

“Laminated Rubber Bearing” is a type of bearing. It uses layers of rubber, often reinforced with steel, for flexible, durable support. These bearings are widely used in engineering. They absorb and dissipate energy. They can accommodate large deformations without losing much stiffness. This article will explore laminated rubber bearings and their uses. We will also present some case studies.

Applications of Laminated Rubber Bearings

1. Structural Support in Buildings: Buildings often use laminated rubber bearings for seismic isolation. Installing these bearings between the foundation and superstructure can greatly reduce earthquake damage. The bearings allow the building to move independently of the ground. This minimizes damage and ensures occupant safety.

2. Bridges and Highway Structures: Laminated rubber bearings are vital in transportation engineering. They support bridges and highway structures. They accommodate thermal expansions and contractions. They also provide flexibility during seismic events. This ensures the structural integrity and safety of these vital infrastructures.

3. Industrial Machinery: Laminated rubber bearings reduce vibration and noise in industrial machinery. These bearings dampen heavy equipment movements. This extends the machinery’s life and improves operator comfort.

4. Wind Turbines: The renewable energy sector uses laminated rubber bearings in wind turbines. They provide stable support and reduce vibrations from wind gusts. This enhances the efficiency and reliability of wind energy generation.

Case Studies

1. Seismic Isolation of a Hospital Building

A recent case study involved isolating a hospital from earthquakes in a high-risk zone. Engineers retrofitted the building with rubber bearings to resist earthquakes. Following the installation, the building underwent rigorous testing to ensure its structural integrity. The results showed a significant drop in seismic response. This proved that laminated rubber bearings effectively protect critical infrastructure.

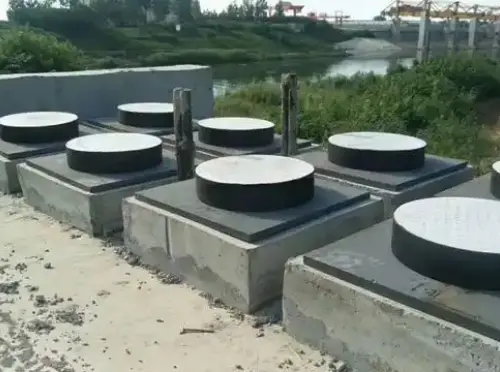

2. Bridge Expansion Joint Replacement

Another case study focused on replacing expansion joints in a highway bridge. The existing expansion joints had deteriorated over time. This raised concerns about structural safety. The project team replaced the worn-out joints with laminated rubber bearings. They provided the needed flexibility and durability. This project’s success showed that laminated rubber bearings are very versatile. They can solve many engineering problems.

3. Vibration Reduction in a Manufacturing Facility

In a factory, heavy machinery often caused excessive vibration and noise. To address this issue, engineers installed laminated rubber bearings beneath the machinery. The bearings dampened vibrations. This made for a quieter, more comfortable workplace. Additionally, the reduced vibrations contributed to a longer equipment lifespan and improved productivity.

Conclusion

Laminated rubber bearings are a valuable engineering tool. They have many uses and benefits. These bearings can improve safety and performance. They can also enhance structural integrity. Engineers have used them to isolate buildings from earthquakes. They also reduce vibrations in industrial machines. Our exploration of laminated rubber bearings is ongoing. The potential for new uses is vast and exciting.
